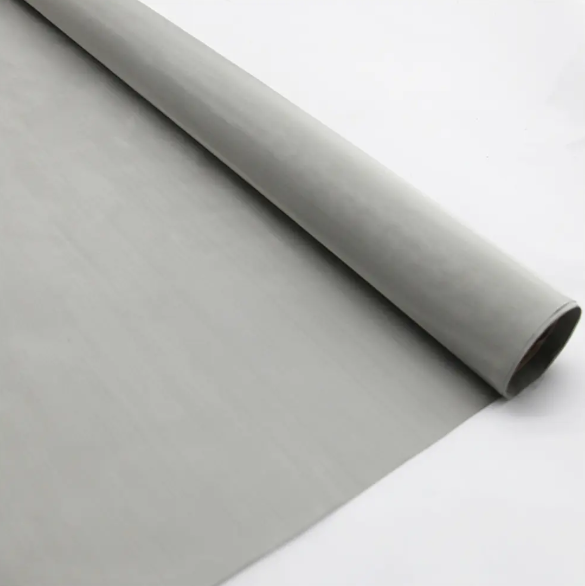

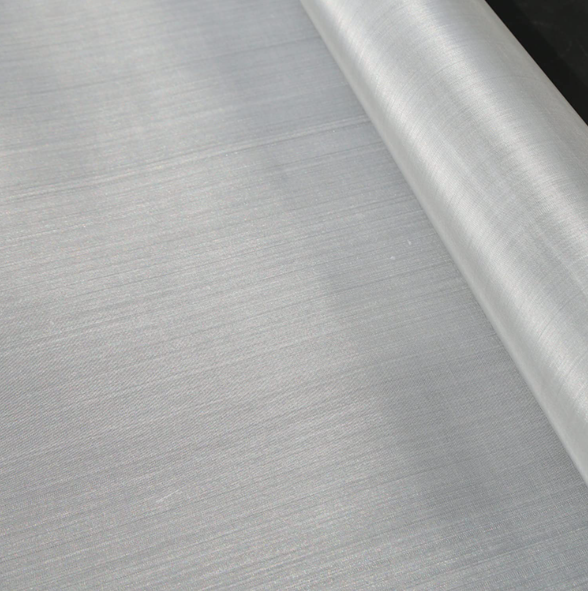

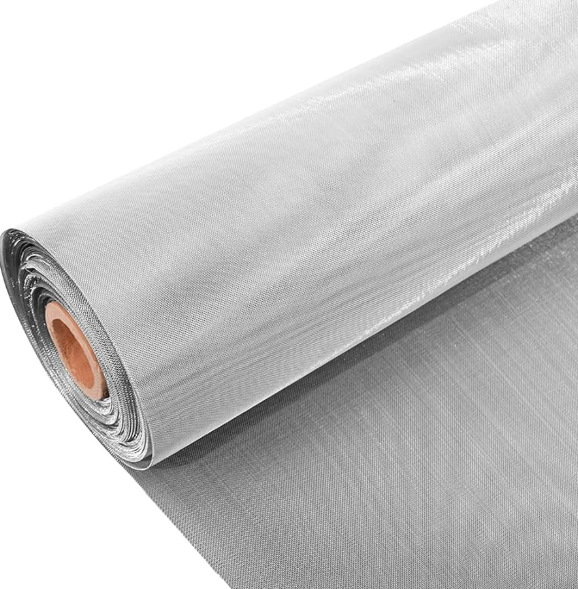

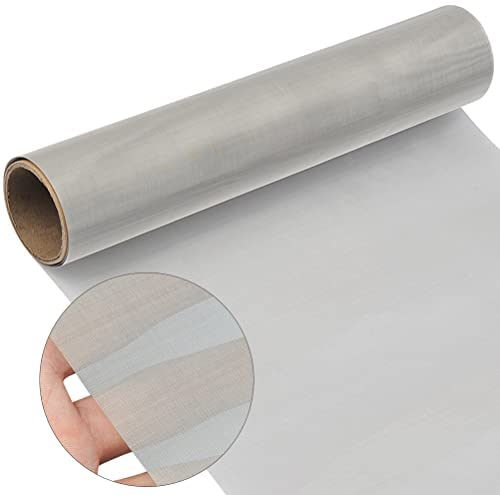

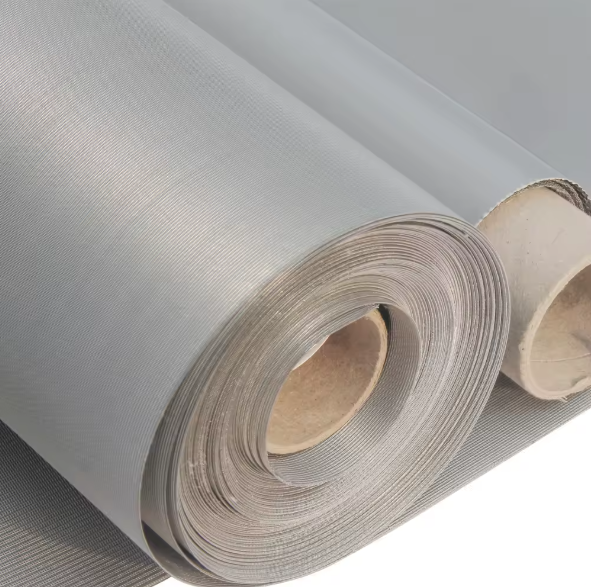

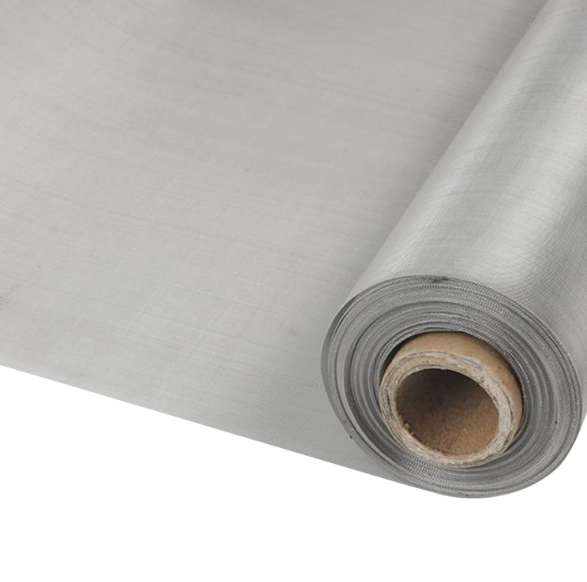

Stainless steel wire mesh is made of stainless steel wire through warp and weft woven. Mainly used for the filtration and screening of gas, liquid and solid, the separation of media and so on. With resistance for acid, alkali, high temperature and grind, it is widely used in industries like petroleum, petrochemical, automotive, new energy, food, pharmacy and others. According to the opening type and woven type, the stainless steel woven mesh can be divided into square mesh(plain weave, twill weave), dutch weave mesh(plain dutch weave, twill dutch weave, double warp dutch weave, reverse plain dutch weave, reverse twill dutch weave, optimized design).

Mesh Count	Wire Diameter		Width Opening		Open Area
	(inches)	(mm)	(inches)	(mm)	Percentage
40	0.0135	0.343	0.012	0.29	21.2
40	0.013	0.33	0.012	0.31	23
40	0.01	0.254	0.015	0.38	36
40	0.0095	0.241	0.0155	0.39	38.4
40	0.009	0.229	0.016	0.41	41
40	0.0085	0.216	0.0165	0.42	43.6
40(B)	0.0065	0.165	0.019	0.47	54.8
45	0.0075	0.191	0.015	0.37	43.8
50	0.011	0.279	0.009	0.23	20.3
50	0.009	0.229	0.011	0.28	30.3
50	0.0085	0.216	0.0115	0.29	33.1
50	0.008	0.203	0.012	0.31	36
50	0.0075	0.191	0.0125	0.32	39.1
50	0.0055	0.14	0.015	0.37	52.6
50(B)	0.0045	0.114	0.016	0.39	60.1
60 (TW)	0.011	0.279	0.0057	0.15	11.7
60	0.009	0.229	0.0077	0.2	21.3
60	0.0075	0.191	0.0092	0.23	30.5
60	0.007	0.178	0.0097	0.25	33.9
60	0.0065	0.165	0.01	0.26	37.5
60	0.006	0.152	0.011	0.27	41.2
60(B)	0.0045	0.114	0.012	0.31	53.3
60(B)	0.004	0.102	0.013	0.32	57.8
70	0.007	0.178	0.0073	0.19	26.1
80 (TW)	0.007	0.178	0.0055	0.14	19.4
80	0.0055	0.14	0.007	0.19	31.4
80(B)	0.0037	0.094	0.0088	0.22	49.6
90 (B)	0.0035	0.0889	0.0076	0.19	46.8
90	0.005	0.127	0.006	0.15	30.3
100	0.0045	0.114	0.0055	0.14	30.3
100	0.004	0.102	0.006	0.15	36
100	0.0035	0.0889	0.0065	0.17	42.3
120 (TW)	0.004	0.1016	0.0043	0.1092	26.8
120	0.0037	0.094	0.0046	0.1168	30.9
120	0.0026	0.066	0.0058	0.15	47.3
130	0.003	0.076	0.004	0.102	31.1
140	0.003	0.0762	0.004	0.1016	35.3
150	0.0026	0.066	0.0041	0.1041	37.4
160	0.0025	0.0635	0.0038	0.0965	36.4
165 (B)	0.0019	0.048	0.0042	0.1067	47.1
180	0.0023	0.0584	0.0033	0.0838	34.7
200 (TW)	0.0023	0.0584	0.0027	0.0686	29.1
200	0.0021	0.0533	0.0029	0.0737	33.6
200 (B)	0.0016	0.0406	0.0034	0.0867	46.4
230 (B)	0.0014	0.0356	0.0029	0.0737	46
250 (TW)	0.0016	0.0406	0.0024	0.061	36
250(B)	0.0014	0.0354	0.0025	0.0635	42
270 (TW)	0.0016	0.0406	0.0021	0.0533	32.2
270(B)	0.0014	0.0356	0.0022	0.0559	38
325 (TW)	0.0014	0.0356	0.0017	0.0432	30
325(B)	0.0011	0.0279	0.002	0.0508	42
400 (TW)	0.0011	0.0279	0.0015	0.0381	36
500 (TW)	0.001	0.0254	0.001	0.0254	25
635 (TW)	0.0008	0.0203	0.0008	0.0203	25

Fine Wire Cloth
